Products

Solar Generators and Inverters

ModelDescriptionInverterPV PanelBattery
Energy
TW01-300-00Power generator300W 12V1*60W1*25Ah
300Wh
TW01-500-00Power generator500W 12V2*150W1*100Ah
1200Wh
TW01-1000-00Power generator1000W 24V1*360W2*55Ah
1320Wh
TW01-1000-01Power generator1000W 24V2*360W2*100Ah
2400Wh
TW01-3500-00Hybrid Inverter3000W 24V/ 3500VA 24VUp to 1500WExternal Lithium LFP /Gel

TW01-5500-00Hybrid Inverter
5000W 48V/ 5500VA 48VUp to 5500WExternal Lithium LFP/Gel

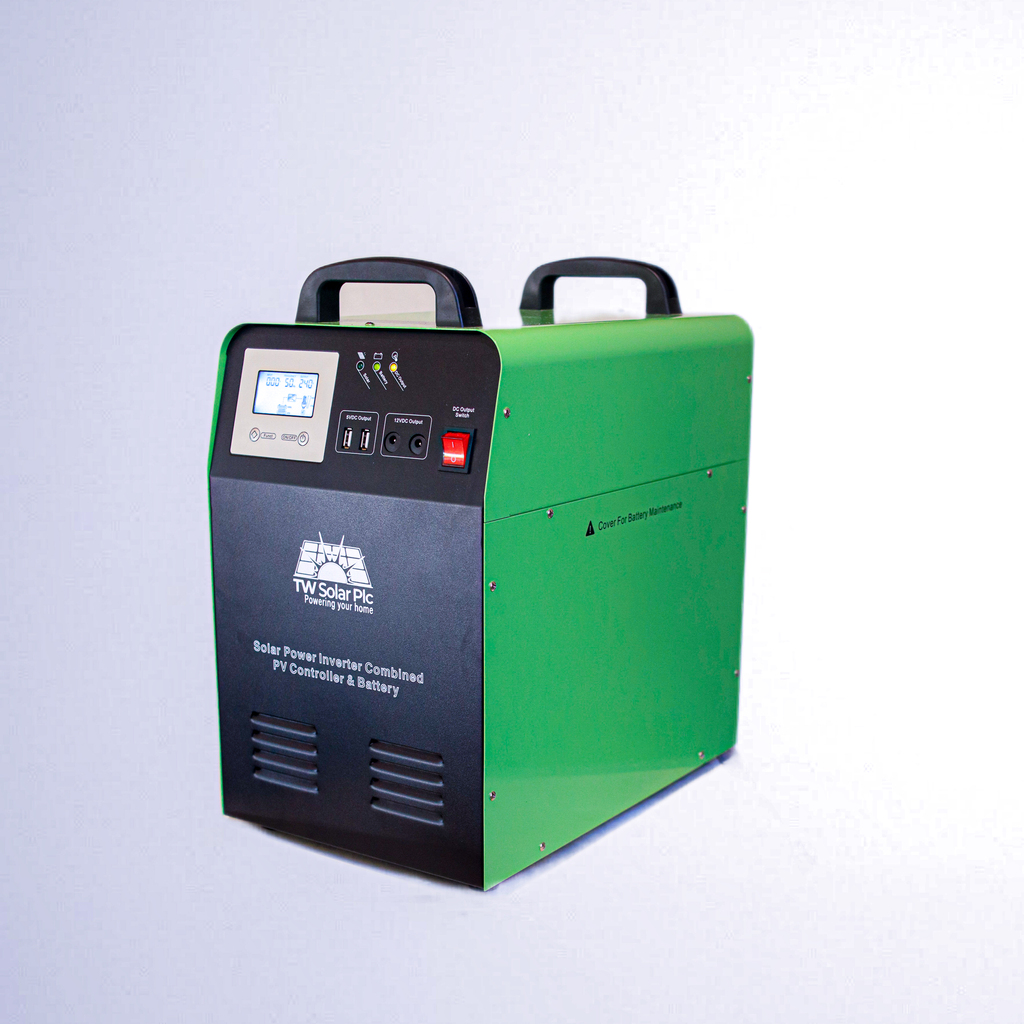

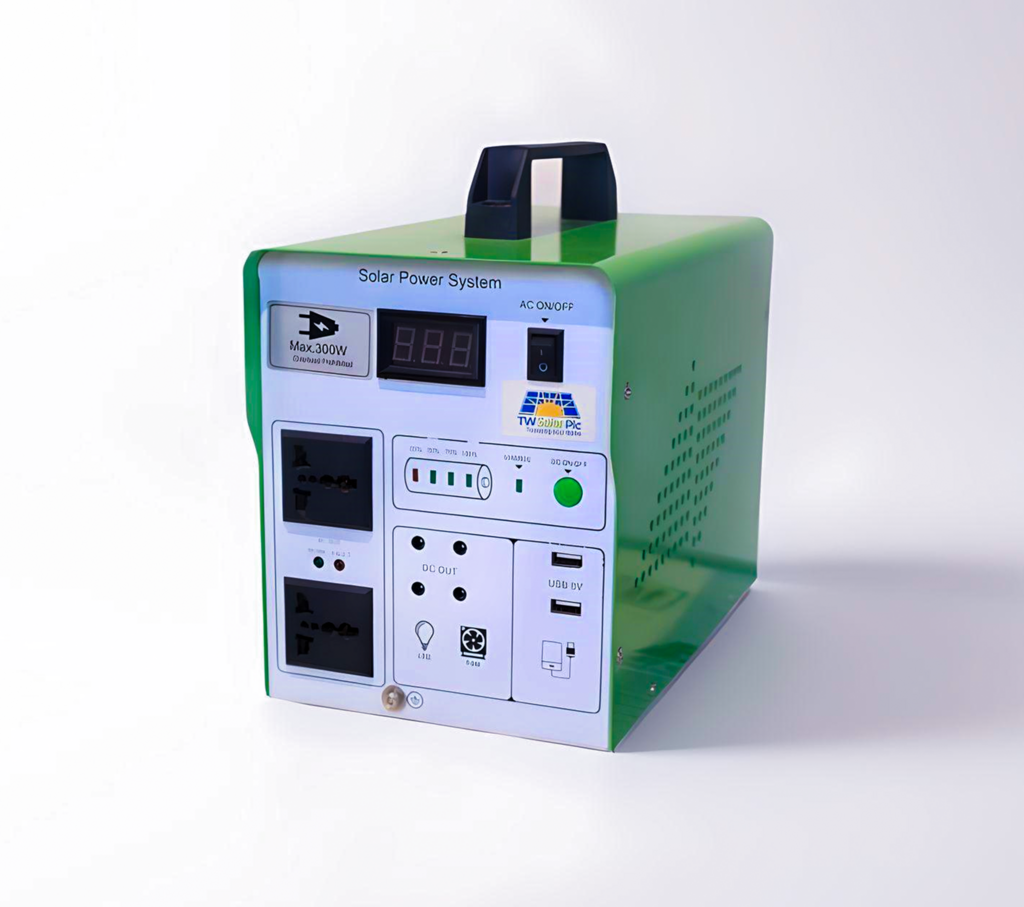

300W 12V 25Ah

  • Ideal for small village homes
  • Fan, Phone and laptop charging
  • 3-5W LED bulbs
  • Two built-in sockets
  • Battery 1 Year warranty
  • Solar Panel 25Yr warranty
**Portability and Simple Installation**
**Maintenance-Free Performance**
- Equipped with an integrated battery, inverter, and charger
**Includes an LED bulb and accessory cables**
**Comprehensive System Protection**
- Safeguards against low voltage, overload, and short circuits
**Flexible Charging Options**
- Recharge using a solar panel or AC with a separate charger
**Displays Battery Voltage**
**Features Indicators for Load Power and Charging/Battery Status**

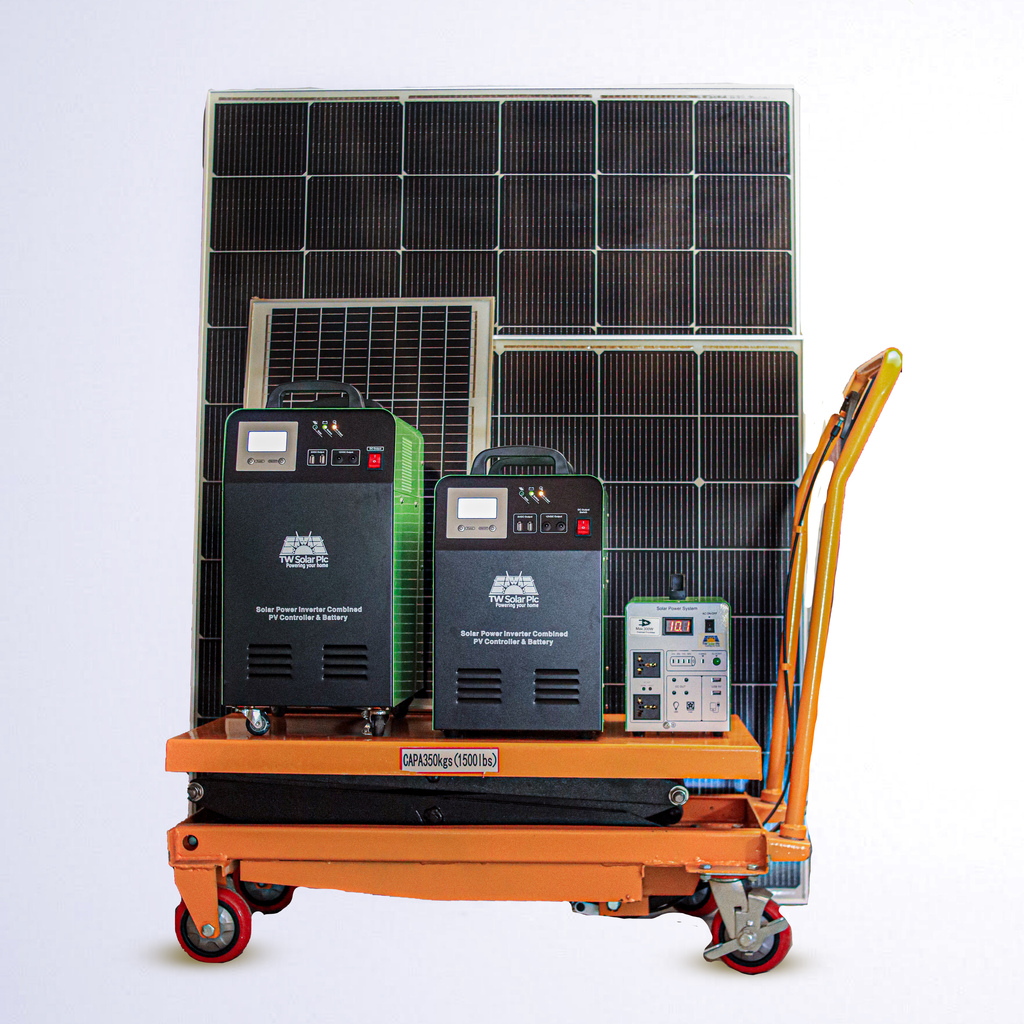

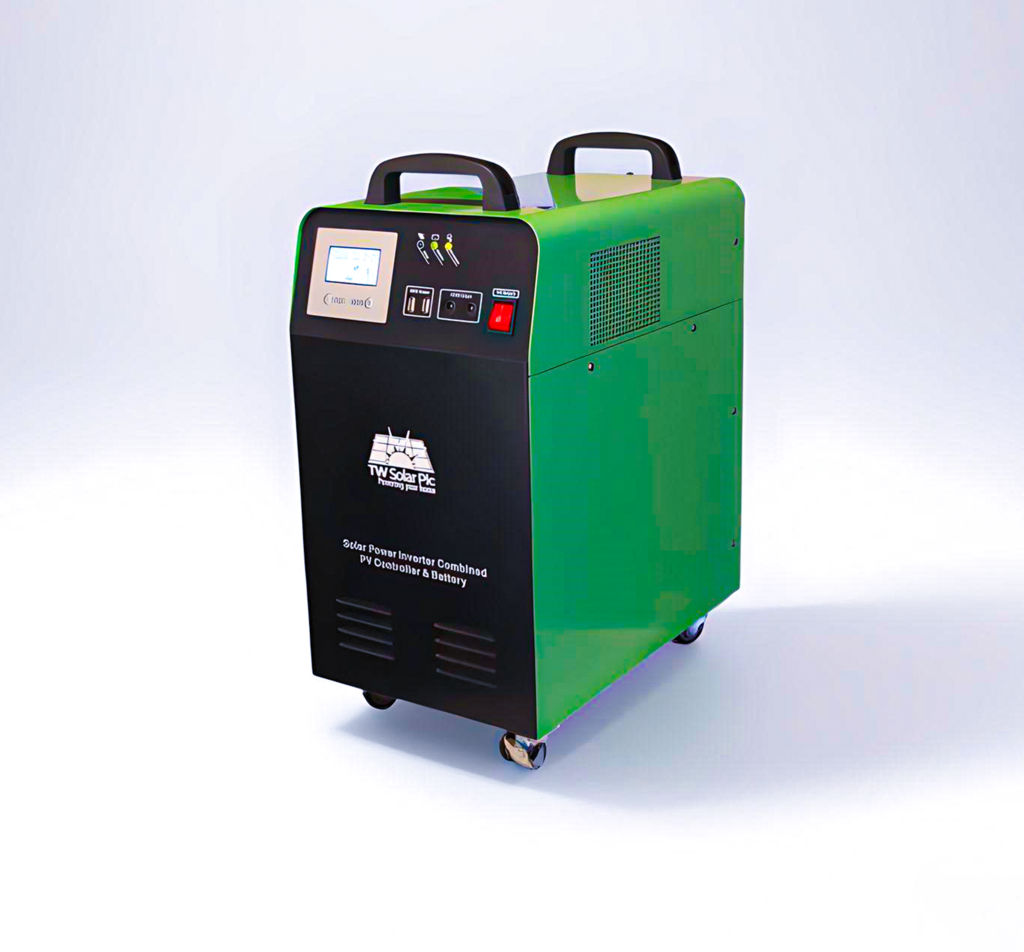

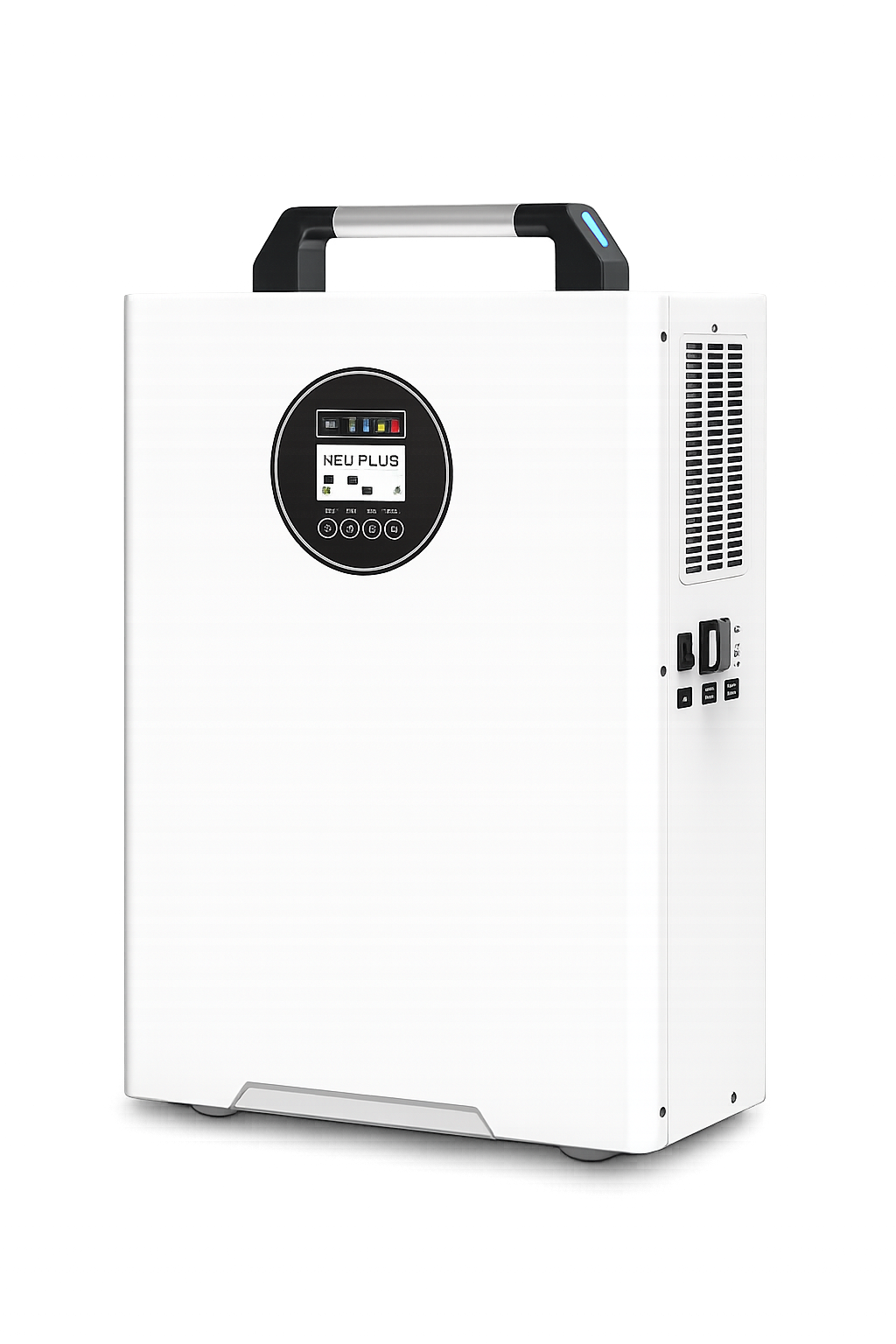

High power Solar Generators 500-1000W

**Integrated Solar Power Generator for Easy Installation**
**Maintenance-Free Operation with Inbuilt Components**
**Exceptional Performance with Dual CPU Intelligent Control**
**Supports a Wide Range of Loads** (fridge, fan, lights, computer) – Pure Sine Wave AC Output
**Selectable Mains or Battery Priority Operating Modes**
**Convenient 5VDC-USB and 12VDC Output Ports for DC Loads**
**Overcharge and Over Discharge Protection for Extended Battery Life**
**Internal Chassis Temperature Monitoring and Control** – Intelligent Exhaust Fan Management
**Automatic Protection and Alarm Features Including:**
   AC Output Overload Protection
   Short Circuit Protection
   Battery Overvoltage and Undervoltage Protection

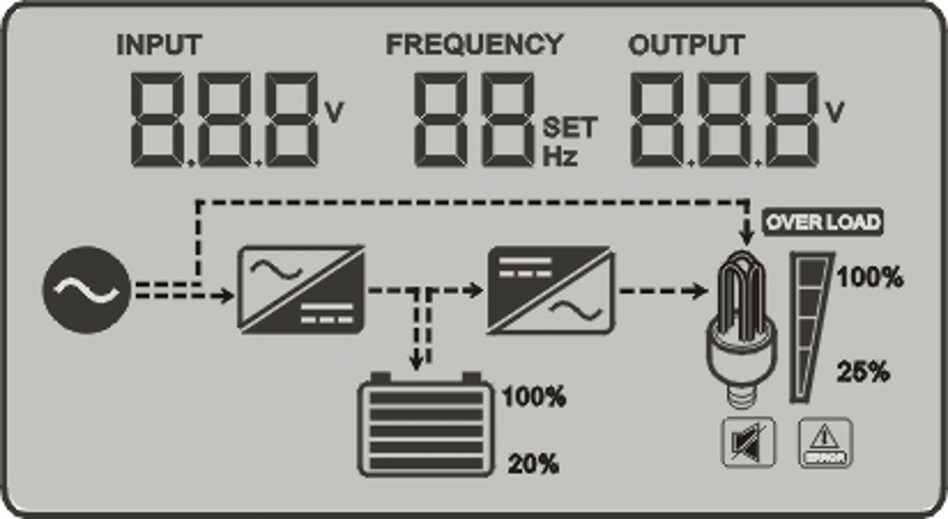

**LCD Display for Monitoring Equipment Status**
   Input/Output Voltage and Frequency
   Mains Supply and Inversion Modes
   Battery Capacity and Load Level

**LED Indicators**
   Solar Charge State (charging, standby, preparing to charge)
   Battery Voltage Indicator (normal, under/over voltage)
   DC Output State (normal, overload, off)

**Audible Alarm for Battery Status and Over Temperature Conditions**

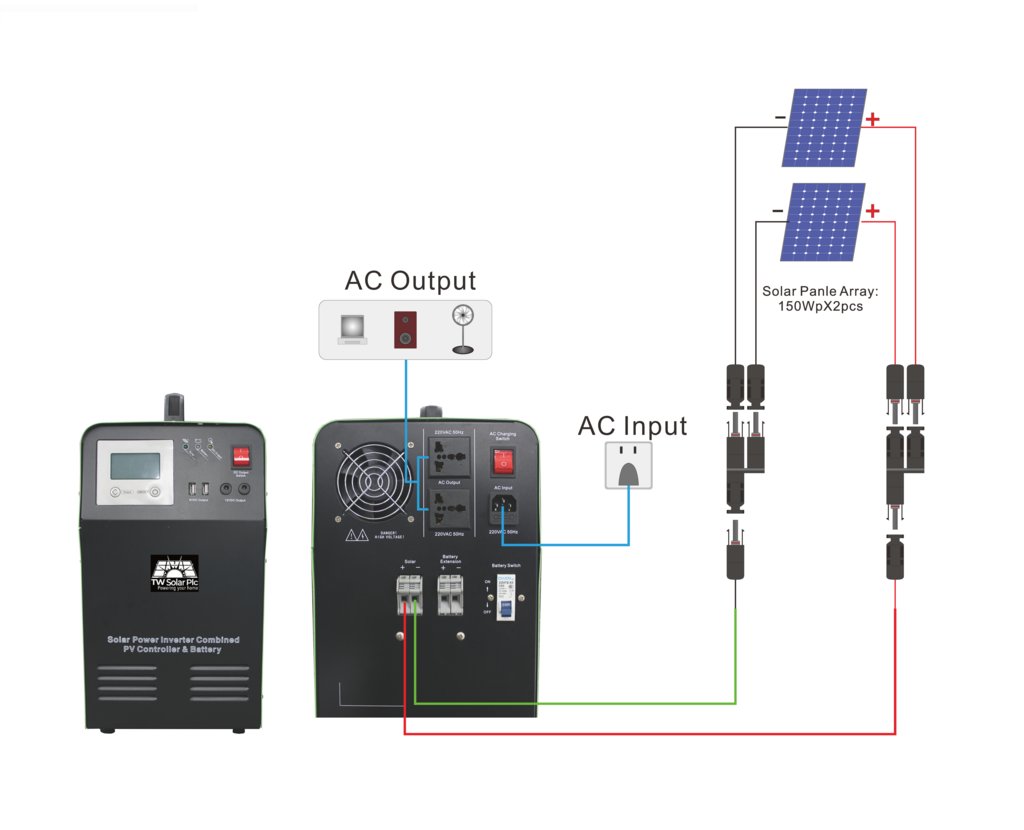

500W 12V 100Ah

  • Ideal for small homes & apartments
  • Powers small Refrigerators, TV & fans
  • Phone and laptop charging
  • 5W 12V LED bulbs
  • Two built-in sockets
  • Utility charging and auto changeover
  • Battery 1 Year warranty
  • Solar Panel 25Yr warranty

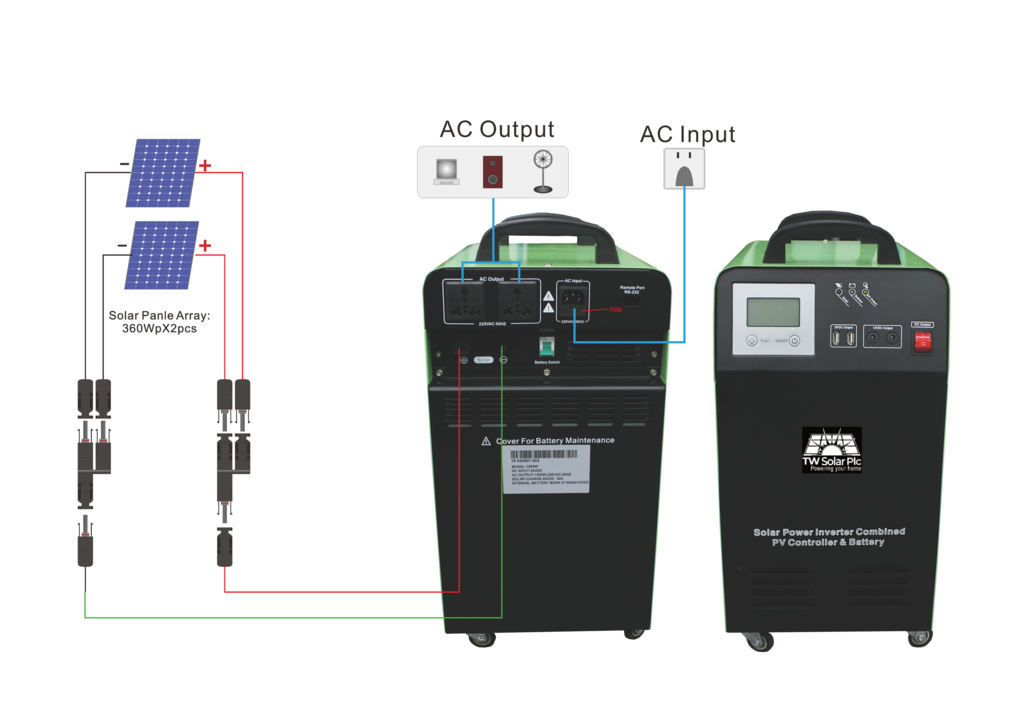

1000W 24V 200Ah

  • Ideal for small homes & apartments
  • Outdoor venues for lights
  • Powers larger Refrigerators, TV and fans
  • Phone and laptop charging
  • 5W 12V LED bulbs
  • Two built-in sockets
  • Utility charging and auto changeover
  • Battery 1 Year warranty
  • Solar Panel 25Yr  warranty

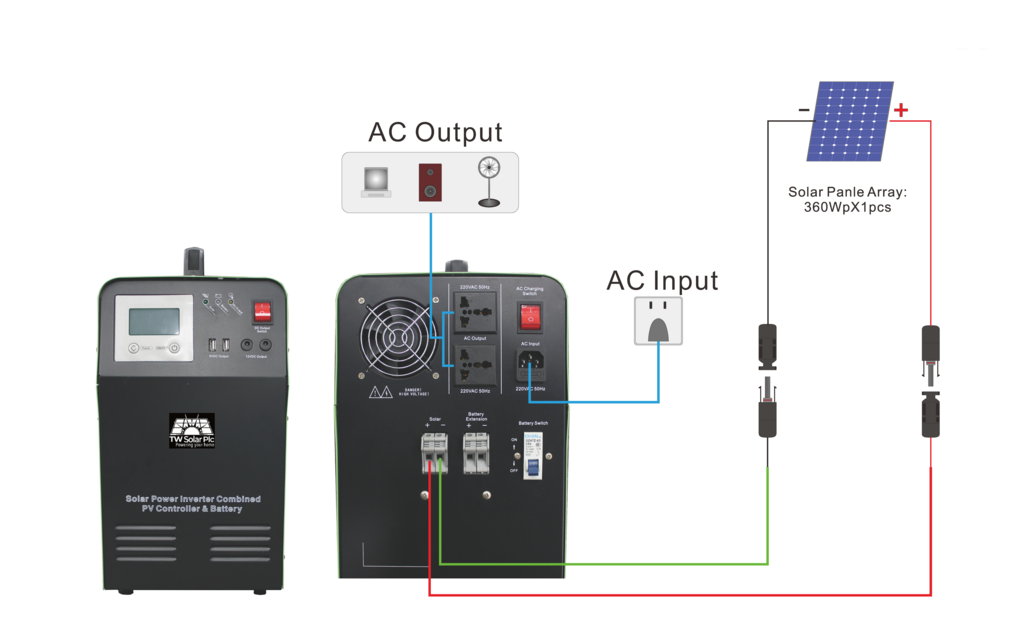

1000W 24V 110Ah

  • Ideal for small homes & apartments
  • Outdoor venues for lights
  • Powers Refrigerators, TV and fans
  • Phone and laptop charging
  • 5W 12V LED bulbs
  • Two built-in sockets
  • Utility charging and auto changeover
  • Battery 1 Year warranty
  • Solar Panel 25Yr  warranty

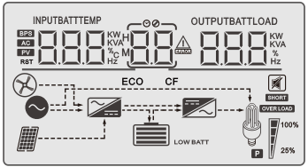

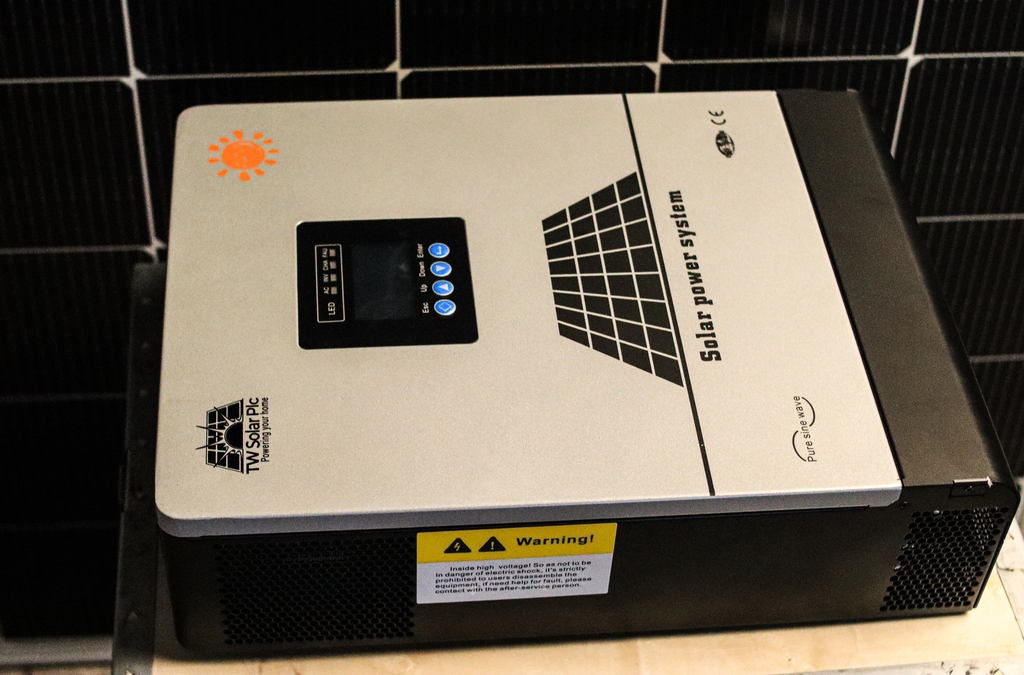

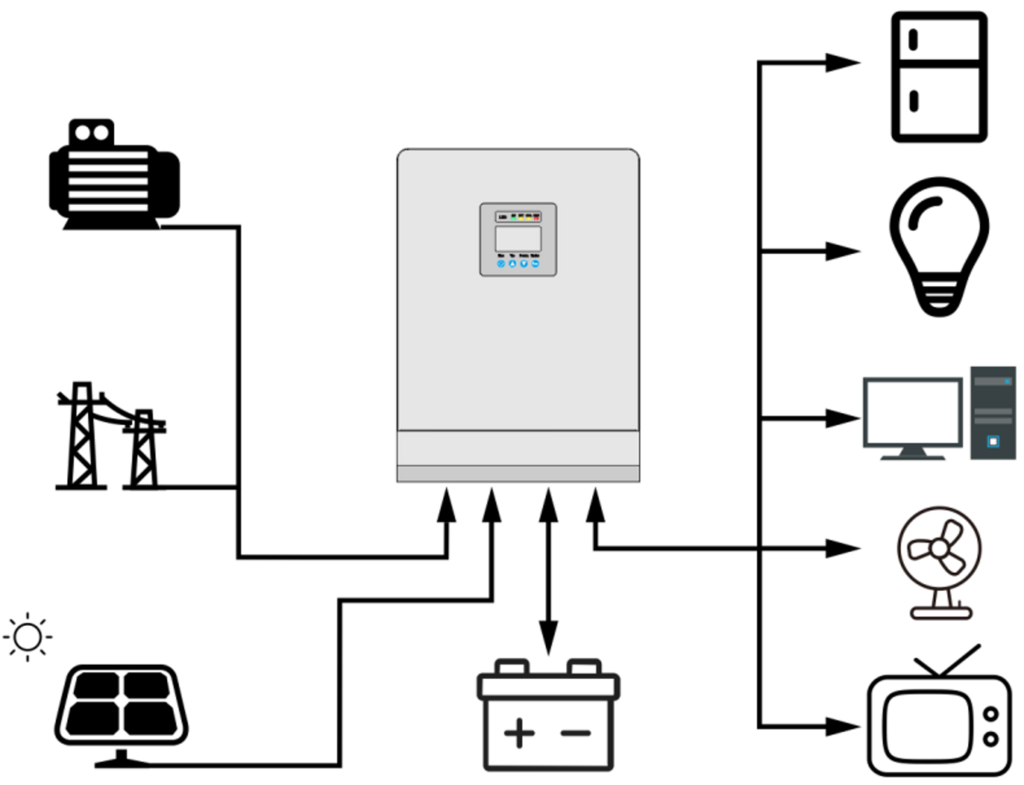

  • High Frequency Inverter 5000W 48V| 3000W 24V
  • Compatible with Lithium Iron Phosphate (LiFePO) and GEL batteries
  • Wide range of PV panel supported (405, 555, 575, 580W)
  • Ideal for whole home solar systems
  • Fully off grid solution
  • MPPT Charge control system
  • Pure sine wave output
  • Connect up to nine units in parallel (45kW) -TW01-5500 only
  • Optional Three phase connection

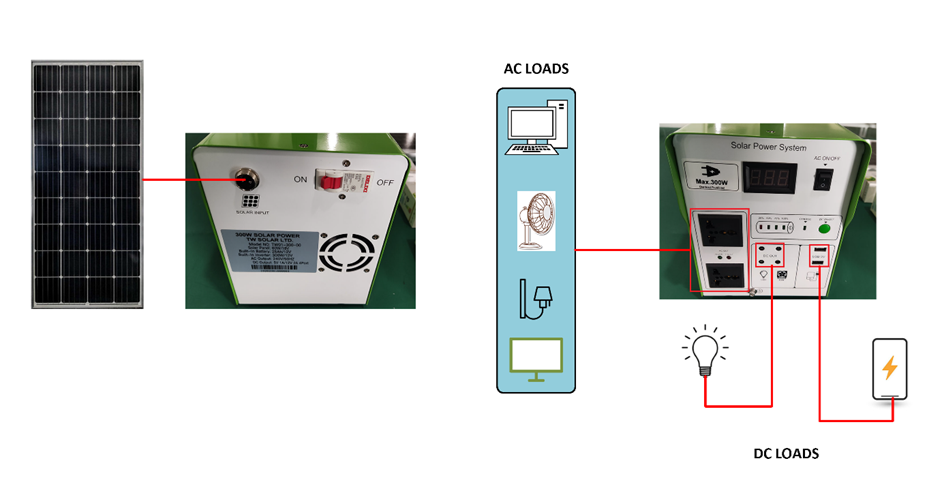

300W 12V 25Ah

1000W 24V 200Ah

Specifications

​
ComponentRating
Notes
Inverter300W /12V

Output TypeModified sine wave

Solar Panel60W/ 18.5Vmp

Battery12V/ 1*25 Ah

Controller12V/ 10A
PWM
AC Output240VAC 50Hz
2 sockets
DC Output12 VDC @2A max
5 VDC @ 2A max
4 plugs
2 plugs
Charge time4 hoursTypical

Specifications

ComponentTW01-0500TW01-1000-00
TW01-1000-01Notes
Inverter
500W 12V
1000W 24V
1000W 24V

Output Type
Pure sine wave
Pure sine wave
Pure sine wave

Max PV array Power
360W
720W
720W

Solar Panel
2*150W/ 18Vmp

1*360W/ 34.2Vmp


2*360W/ 34.2Vmp



Max PV voltage
25 VDC
50 VDC
50 VDC

Charging voltage range
10-25 VDC
20-50 VDC
20-50 VDC

Battery
12V/ 1*100Ah
12V 2*55Ah
12V 2*100Ah

Controller
12V/ 30A PWM
24V 30A PWM
24V 30A PWM

AC Output
240VAC 50Hz
240VAC 50Hz

240VAC 50Hz
2 sockets
DC Output
12VDC @2A max
5VDC  @2A max
12VDC @2A max
5VDC  @2A max
12VDC @2A max
5VDC  @2A max
2 plugs each
Charge time
4 hours
3.7
3.3 hours
Typical
Operating ambient temperature
-20C to +50C
-20C to +50C
-20C to +50C

Humidity
0-90% NC
0-90% NC
0-90% NC

Weight
42 kg
48 kg
81 kg

Specifications

ComponentTW01-5500TW01-3500
Output Power5kW
3kW
Output Voltage WaveformPure sine wavePure sine wave

Rated Output Voltage

208/220/230/240 VAC

208/220/230/240 VAC

Rated Input Voltage

208/220/230/240 VAC

208/220/230/240 VAC

Output Frequency

50/60Hz

50/60Hz

Input Frequency

50/60Hz (auto detect)

50/60Hz (auto detect)
Peak Efficiency93%93%

Efficiency (Utility Mode)

>95%>95%

Surge capacity

2 * rated 5 seconds2 * rated 5 secs

Rated DC input voltage

48VDC24VDC

Cold Start Voltage

46.0 VDC23.0VDC
Parallel OperationYes (Max 9)No
3-Phase ConfigurationYesNo

Utility Charging Mode



AC Charging current (Max)

80A
60A

Charging voltage (AGM/ Gel BAT)

56.4
28.2

Floating Charging Voltage

54VDC
27VDC

PV Charging Mode



Max PV array Power

5500W
1500W

Starting Voltage

50VDC
50VDC

PV Array MPPT Voltage range

120-430VDC
30-115VDC

Max PV Open circuit voltage

450VDC
145VDC

Max Charging current (AC plus Solar charger)

80A
120A

Operating Temperature range

-10C to 50C
-10C to 50C

Humidity

5% to 95% NC
5% to 95% NC

Net Weight

9.2 kg
8 kg

300W Solar Generator
